The GXF series diagonal flow fan is jointly developed by Shanghai Jiao Tong University and Shangyu Fan Co., Ltd. It is a new type of low-noise, high-efficiency and energy-saving inclined flow fan. The flow rate of the inclined flow fan is greater than that of the centrifugal fan, the total pressure is higher than that of the axial flow fan, and the volume is smaller than that of the centrifugal fan. The fan has passed the experimental research of the simulation machine and adopted new blade shapes and blades, thus obtaining greater flow rate and pressure and improving the efficiency of the fan.
The GXF series diagonal flow fan is divided into sixteen specifications of 300-1400mm according to the impeller diameter, and seven types of A, B, C, D, E, F, and S according to the type, with a total of 58 machine numbers. The air volume ranges from 1500mm to 9000m3/h, and the total pressure ranges from 185-2500Pa; This provides sufficient selection conditions for the design department and no wonder the unit, with specific data referring to the fan performance parameter table.
Fan materials include steel, fiberglass, and explosion-proof. (Adopting explosion-proof measures and using aluminum alloy materials)

Performance parameter table of GXF-A oblique flow fan

Performance parameter table of GXF-B oblique flow fan

Performance parameter table of GXF-C oblique flow fan

Performance parameter table of GXF-D oblique flow fan

Performance parameter table of GXF-E oblique flow fan

Performance parameter table of GXF-F oblique flow fan

Performance parameter table of GXF-S dual speed diagonal flow fan (1)

Performance parameter table of GXF-S dual speed diagonal flow fan (2)

GXF series diagonal flow fan appearance and installation dimensions (A, B, C, D, E, F types)

GXF-S series dual speed diagonal flow fan appearance and installation dimensions

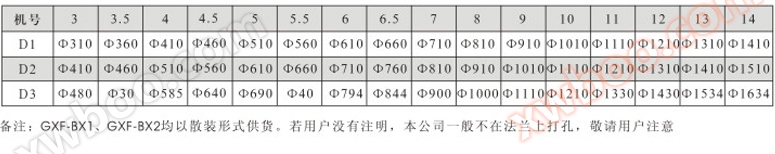

Installation dimensions of GXF-BX1 silencing oblique flow fan (mm)

Installation dimensions of GXF-BX2 silencing oblique flow fan (mm)
