MW-BS320 back sealed liquid packaging machine
MW-BS320 back sealed liquid packaging machine
Product details
mechanical parameters
|
1 |
control mode |
SiemensPLC |
|
2 |
Touch Screen |
Willem |
|
3 |
speed |
100bag/minute |
|
4 |
Actual Speed |
30-100bag/minute |
|
5 |
BAG TYPE |
Back or middle seal |
|
6 |
Bag making length range |
50-200mm |
|
7 |
Wide range of bag making |
40-140mm |
|
8 |
Edge size |
5-10mm |
|
9 |
Fill Range |
Depending on the customer |
|
10 |
measuring method |
Pneumatic piston pump |
|
11 |
Storage hopper capacity |
20L |
|
12 |
Roll film width |
320mm |
|
13 |
Molding machine specifications |
customized |
|
14 |
incision |
Tooth cutting |
|
15 |
Drive mode |
mechanical drive |
|
16 |
Film feeding motor |
0.15Kw |
|
17 |
Main motor |
0.75Kw |
|
18 |
power supply |
220V 50Hz/60Hz |
|
19 |
weight |
260Kgs |
|
20 |
External dimensions |
900mm x 850mm x 1600mm |
Product Introduction
- Purpose and characteristics
This device can be directly used as a roll film forming back seal or middle seal bag, suitable for various liquids and pastes
The entire process, including film placement, date printing, color matching, molding, filling, sealing, and bag cutting, can be completed continuously in one go.
Equipped with advanced technologyPLCControl system, touch screen settings, digital temperature control, and safety emergency stop protection.
The whole machine is made of stainless steel304Material manufacturing.

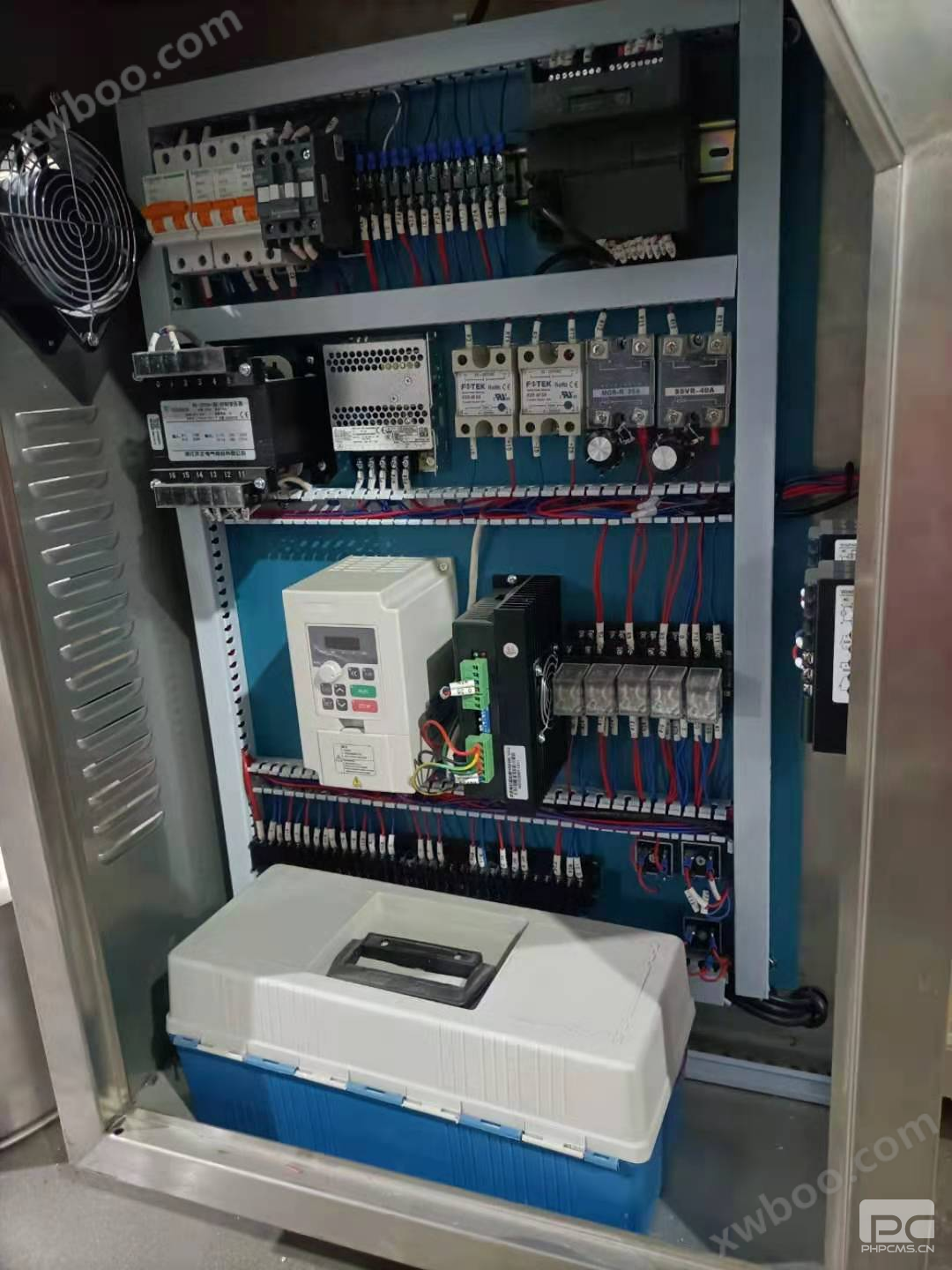

mechanical structure
