characteristic:

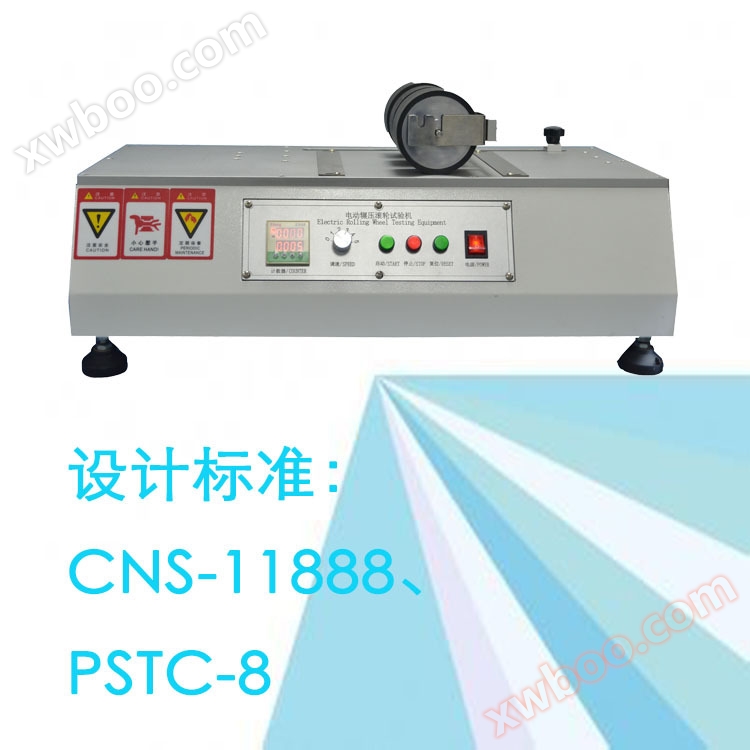

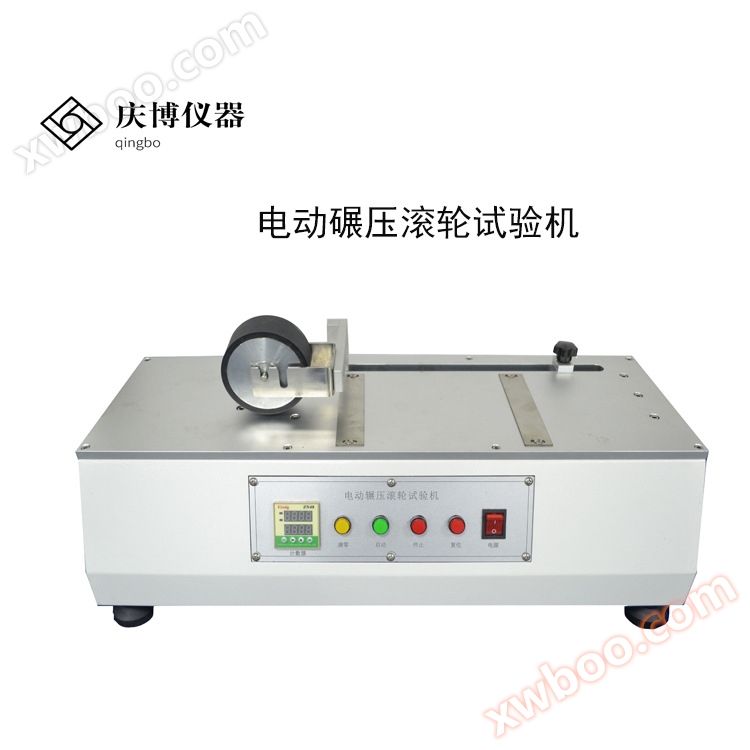

This machine is suitable for preparing test specimens for adhesive tape peel strength, adhesion, and other tests. Apply a fixed pressure and speed to the adhesive tape sample, ensuring it is flat and uniformly adhered to the standard test substrate.

Design standards: CNS-11888, PSTC-8

Technical parameters:

1. Model: QB-8356

2. Wheel weight: 2000g ± 50gf

3. Roller size: Ø 84mm × 45mm

4. Rubber layer hardness: Hs80 ± 5

5. Rolling speed: 600mm/min

6. Machine size: 50 × 30 × 25cm (W × D × H)

7. Machine weight: 15kg

8. Power supply: 1PH, AC220V, 2A

Test steps:

After the glass tape paper selected according to the standard regulations is adjusted in the test environment, it is bonded to standard stainless steel with standard load, rolling speed, and rolling times. It is left to adjust for a certain period of time, and then peeled off with a certain pressure and peeling speed. The peeling condition of the measured sample is observed to determine the bonding strength of the analyzed sample.
