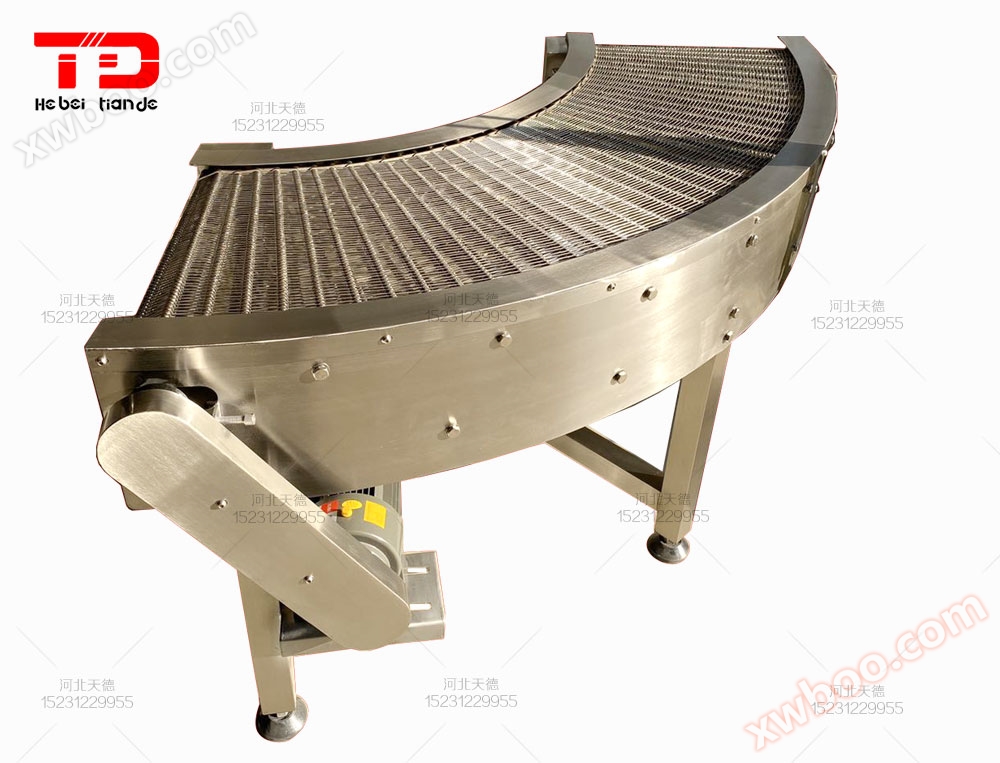

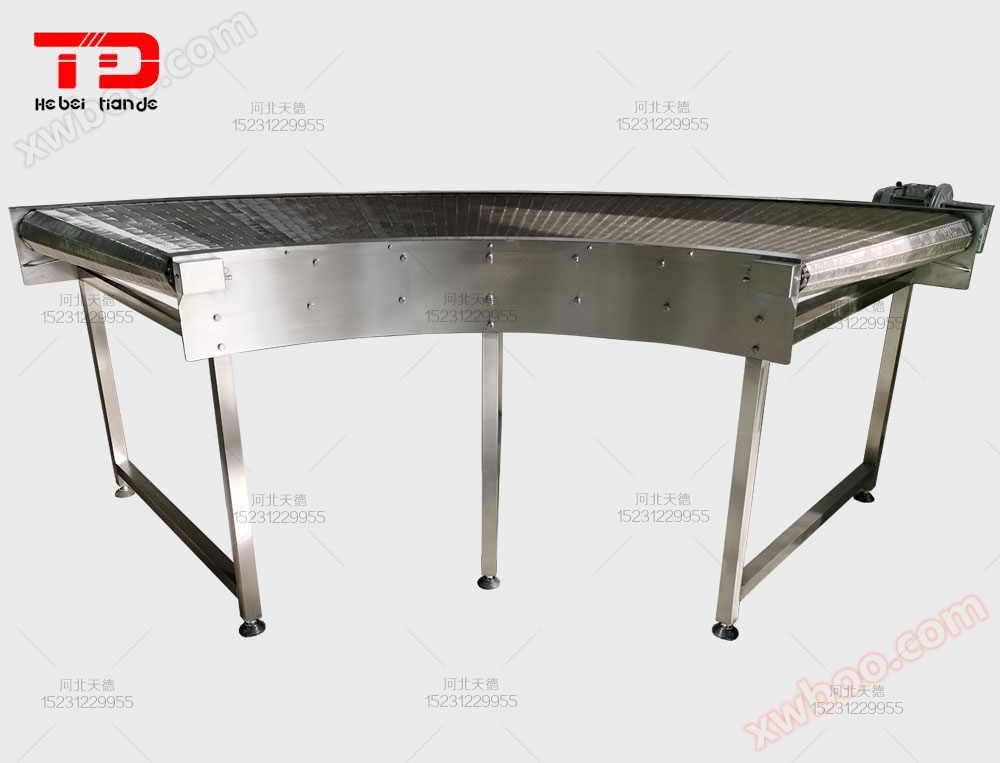

Net belt turning machine (turning machine series)

Product Name: Mesh Belt Turning Machine

Brand Name: Hebei Tiande

Product Material: SUS201 Stainless Steel/SUS304 Stainless Steel

Rack customization specifications:
Width: 0.5m-1.5m
Angle: Turning angle 45 °/90 °/180°
Height: Customized according to requirements, commonly used height is 80-90cm

Product Features:
1. National standard material: Good corrosion resistance, high strength, long-lasting durability, stainless steel plate surface is beautiful, clean, high smoothness, low temperature resistance, high temperature resistance

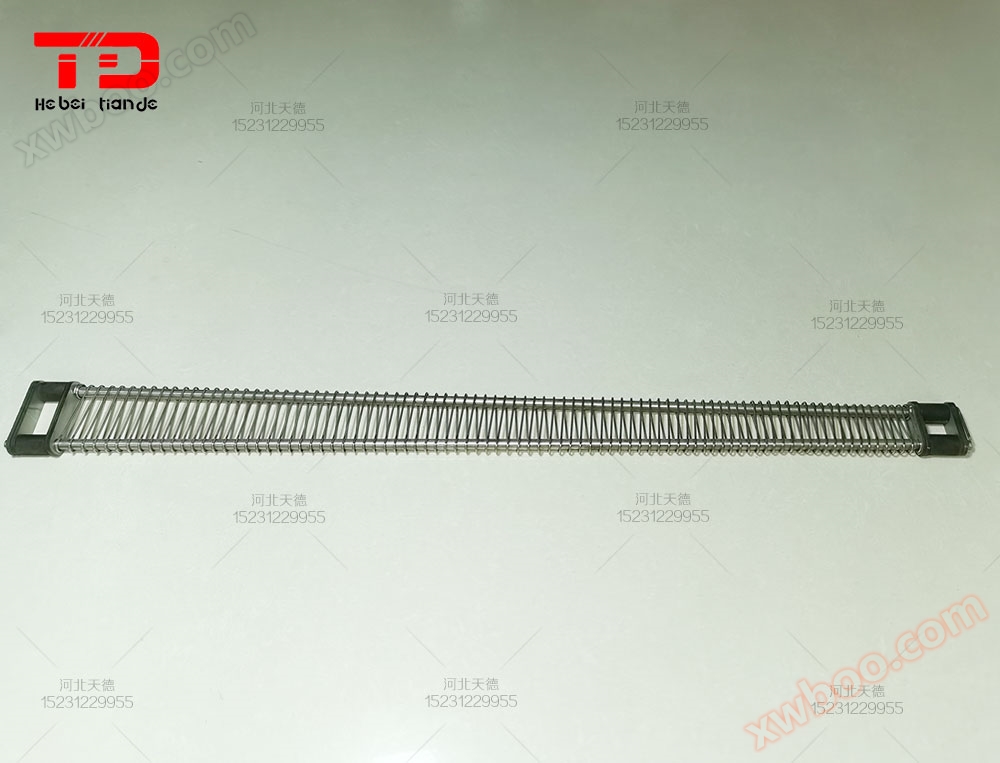

2. Stainless steel mesh belt, with one chain and one connecting rod, has good load-bearing capacity and a smooth surface
3. Smooth operation without slipping or deviation
4. It has breathability, making it easy to dry, clean, and freeze

Scope of application:

Automated conveying, distribution, and post packaging of food, canned goods, pharmaceuticals, beverages, cosmetics and laundry products, paper products, seasonings, dairy and tobacco, etcObject;Material cleaning/drying/drying/freezing, etc.

We want to redefine the turning machine and create extraordinary new conveying equipment from Hebei Tiande, breaking through the manual labor - stainless steel mesh belt turning conveyor, with new materials, new processes, and new quality.

We use stainless steel plates, stainless steel wires, stainless steel drive shaft sprockets, and so on to manufacture a turning conveyor made of 304 stainless steel material that will never rust.

Stainless Steel Mesh Belt Turning Machine - Product Features

Food grade, suitable for various harsh environments

The structure is simple and reasonable, with stable operation and strong load-bearing capacity.

The conveying surface is flat and smooth, making it a perfect substitute for traditional manual labor.

Suggested Product: Mesh Belt Conveyor

scope of application

▼

Product: Stainless Steel Mesh Belt Turning Machine

Product parameters

▼

Plate thickness: commonly used thickness（3 mm）

Wire gauge: commonly used wire diameter（1.5 mm）

Clolour: Stainless Steel Original Color

Width: 0.5m-1.5m

Mesh Wear: 10mm

Material: 304 stainless steel

①

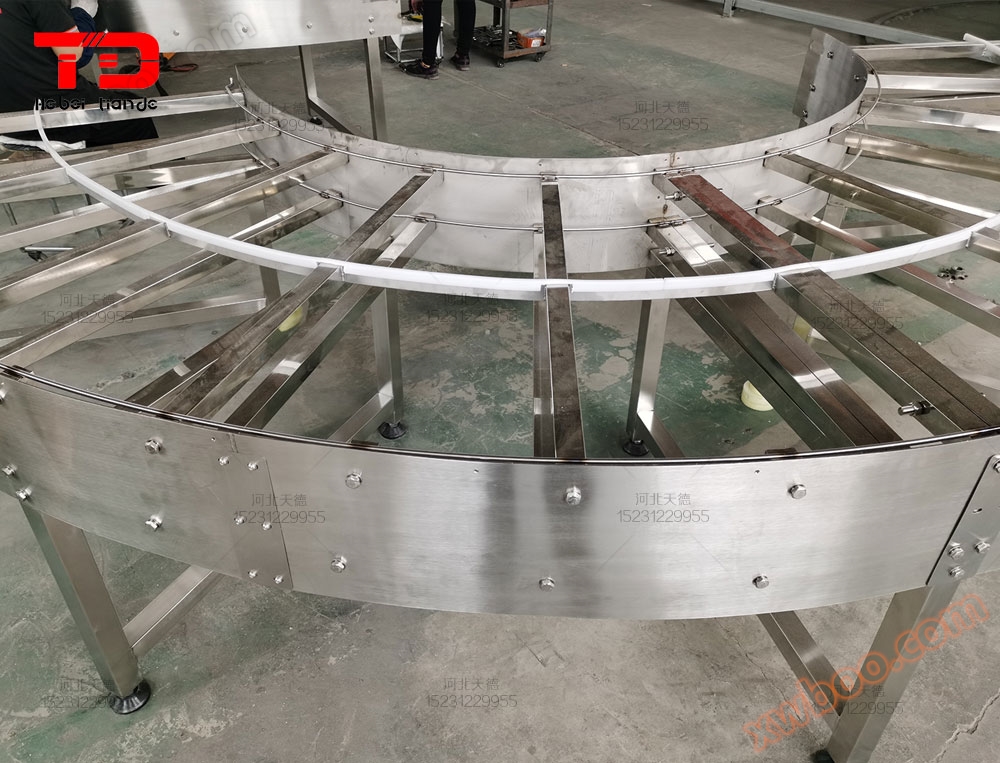

Regarding the Framework

The body frame is made of 304 stainless steel, which is lightweight, easy to manufacture, cost-effective, plastic flexible, structurally stable, anti oscillation, and anti impact.
The frame of the fuselage is made of stainless steel plate by bending. The structure is light in weight, simple in manufacture, cost saving, flexible in plasticity, stable in structure, anti vibration and anti impact.

②

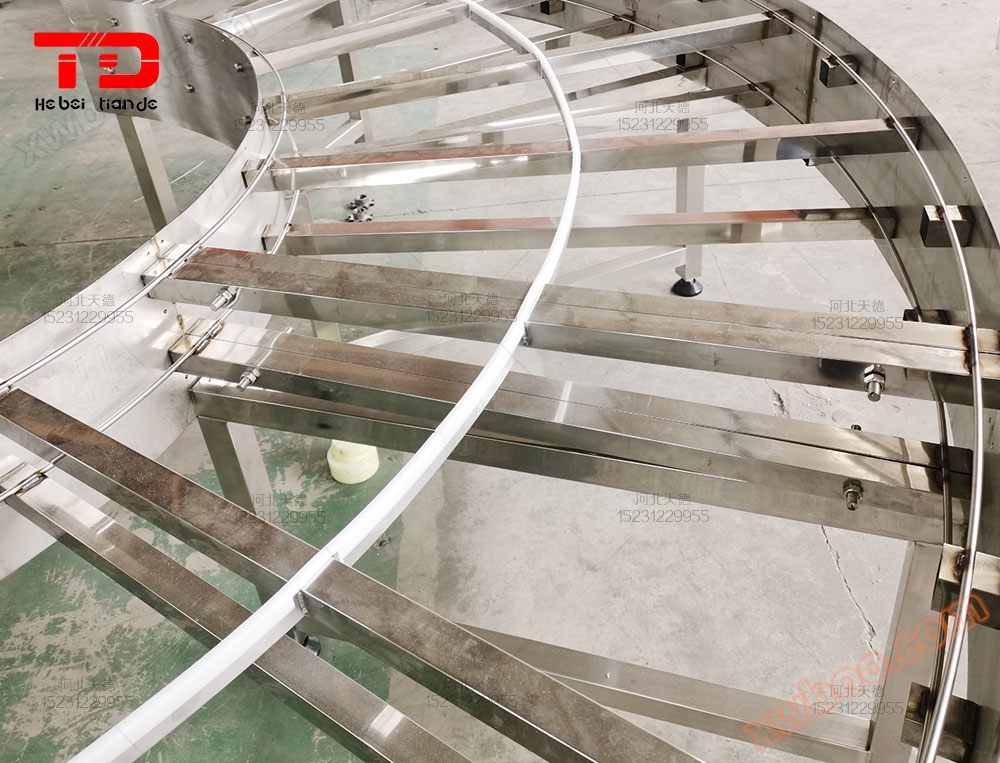

Regarding the thickness and connection method of the framework

Frame thickness: According to the size of the conveyor line, the plate thickness can be selected as 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm (3.0mm is a commonly used thickness)

③

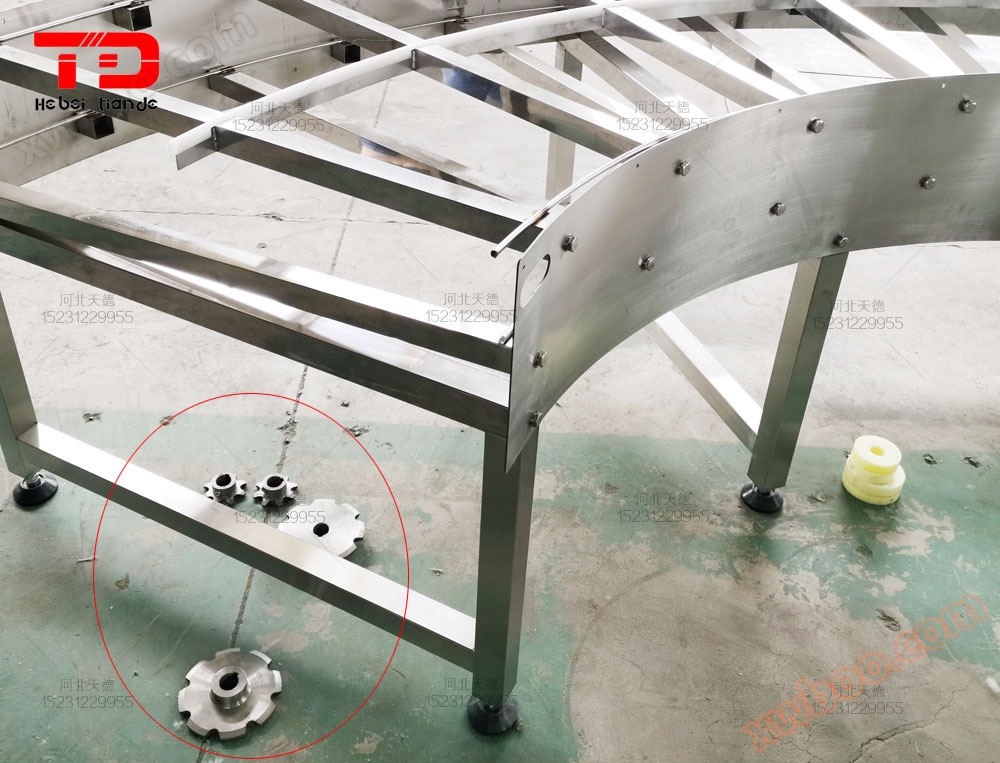

About Chain Wheel

Chain wheel: The number of teeth on the chain wheel of the turning machine is fixed, with one large wheel and one small wheel.

④

About electric motors

Motor: RV motor reducer or cycloidal pin motor reducer can be selected

The motor can be connected to a frequency converter to adjust the conveying speed
